The Firearms and Toolmarks section performs a diverse array of tests regarding firearms in addition to the comparison of toolmarks.   Analysts inspect firearms for safety and test fire to collect bullets and cartridges marked by the firearm.  While a primary request is to determine if a firearm is the source of either bullets or cartridge cases, there are many additional types of examinations and comparisons that may be performed to assist in your investigation. Below you will find a brief description of services offered by the Firearms and Toolmark Section.

No Gun - Examinations:

When fired bullets, cartridge cases, or shot shells are collected with no firearm to compare to they may be compared to one another to determine if they were fired from the same unknown firearm or to possibly determine how many firearms were involved in the crime.

General Rifling Characteristics (GRC) Examinations:

In cases where a weapon is not available for comparison to a fired evidence bullet, the laboratory may be able to provide a list of weapons that could have fired the bullet. By examing the class and rifling characteristic imparted to a fired bullet (caliber, weight, shape, construction of the bullet, direction of twist, number of land and grooves, and widths of land and grooves) and checking these against the Association of Firearm and Tool Mark Examiners (AFTE) General Rifling Characteristics (GRC) Database, a list of weapons that may have fired the bullet can be provided. Marks impressed on a cartridge case may also provide some information about the type of firearm it was fired by.

Firearm Function/Operation:

Firearms may be examined to determine their ability to function as designed. This type of examination may be important in cases such as accidental shootings, suspicious suicides, etc.

Firearms Comparisons:

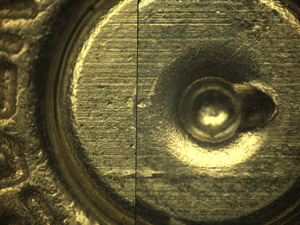

Fired evidence bullets, cartridge cases, and shot shells can be microscopically compared to test fired bullets, cartridge cases, or shot shells from a suspected firearm to determine if they were, or were not fired from that particular gun.


Muzzle to Target Distance Determination:

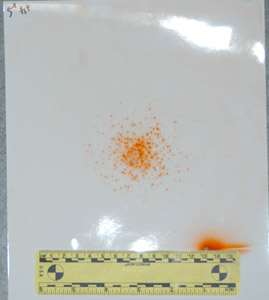

By examining gunshot residue patterns around a bullet hole in a garment or other objects of evidence, and comparing this pattern to test patterns produced using the firearm and ammunition in question, an estimate of the distance from muzzle to target can be given (usually given as a range of distance).

  • This type of analysis generally requires the questioned firearm and ammunition for testing.
  • Other information such as autopsy reports, crime scene photographs showing any bullet holes or wounds and any witness statements can be helpful in determining the muzzle to target distance.


Additional examinations:

  • Fired evidence bullets and cartridge cases can be examined to determine a possible manufacturer or compared to unfired cartridges to determine consistency in construction/manufacturer.
  • Headstamp characters on fired or unfired cartridge cases can be compared to determine if the same tool was used to stamp the characters. This may show an association between items when a traditional comparison is not possible.


IBIS (Integrated Ballistic Identification System)/NIBIN (National Integrated Ballistic Information System):

IBIS is a digital imaging system used to capture images of fired cartridge cases from crime scenes and from firearms seized in conjunction with criminal investigations. The NIBIN database compares these images against other images from fired cartridge cases to identify investigative links between firearms and crime scenes.  The Forensic Science Division will accept all semi-auto pistols, rifles, and shotguns for entry into NIBIN.

The Forensic Science Division, as a routine practice, will not enter test fired cartridge cases from revolvers. Should there be a special request to enter revolver cartridge cases, please contact the Firearms Supervisor directly.  The IBIS system at WCSO-FSD does not have the capability to image bullets.

Images of fired and test fired cartridge cases will be searched against the local NIBIN database and the default regions, which is controlled through ATF, and includes NIBIN sites from the following locations:


ATF – San Francisco FD – Dublin, CA

Alameda County, CA SO Crime Lab

CA DOJ – Fresno (Decommissioned Site)

CA DOJ – Sacramento (Decommissioned Site)

Contra Costa County, CA SO Crime Lab

Fresno County, CA SO (Decommissioned Site)

Fresno, CA PD

Fairfield, CA PD

Oakland, CA PD Lab

Sacramento County, CA DA Lab (Decommissioned Site)

Sacramento County, CA SO Lab

Sacramento, CA PD

Salinas, CA PD

San Francisco, CA PD Crime Lab

San Joaquin County, CA SO

San Mateo County, CA SO Forensic Lab

Santa Clara County, CA DA’s Crime Lab

Santa Maria, CA PD

Stanislaus County, CA SO

Stockton, CA PD


Idaho State Police – Coeur d’Alene (Decommissioned Site)

Idaho State Police – Meridian


Las Vegas, NV Metropolitan PD

Washoe County, NV SO Lab


Utah DPS – Salt Lake City

Utah State Crime Lab – Ogden (Decommissioned Site)

Zones 3 (SW) & 4 (NW)

ATF Labs

ATF Transportable Units


The Firearms Section can search images nationally; however, a special request must be made for this search to be conducted and if your request is granted, your agency will receive an official report stating the region(s) searched.

Serial Number Restoration:

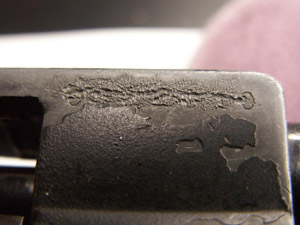

Virtually any object made of metal, which has had a stamped serial number removed or defaced, has the possibility of being restored. Serial numbers, which have been stamped into a variety of items, in addition to firearms, can all potentially be restored. During the process of number stamping, the metal underlying the number is placed under greater stress than the surrounding metal. Even though a person may file or grind away at this number until it is no longer visible, portions of the stressed metal from the stamping can remain. In the laboratory, the defaced surface, where the serial number was, is treated with one or several chemical etching solutions. These chemical-etching solutions will cause the stressed and unstressed metals to behave differently. The different behavior is a chemical reaction visible at the sites of the stressed metal. Restoration is not always obtained. In some cases, the eradication process may have been sufficient to completely remove the stressed metal in some or all areas. This can result in a partial restoration or no restoration at all.

Submission of Firearms Evidence:

  •  Loaded firearms should not be submitted to the Forensic Science Division. All ammunition, magazines and cartridges should be removed and packaged separately for submission (they can be submitted in the same package as the firearm). If assistance is needed with making firearms safe, consult the Firearms Section of the laboratory or a range master.
  • A firearm should not be disabled by disassembling any part or mechanism.
  • Do not mail loaded weapons!
  • Notes/diagrams should be taken by the person collecting the firearm and a copy included with the firearm (note – diagrams should be drawn from the perspective of the shooter):
    • Revolvers –cylinder position, (mark the cylinder on either side of the top strap as found), loading index (diagram location of cartridges/fired cartridge cases in the chamber in relation to the marks on either side of the top strap), and hammer position (forward, safety notch,½ cock, full cock)
    • Semi-automatic firearms – magazine (in or out), round (chambered or not), hammer position (if external), slide position (forward or back), and location of any jammed cartridge/fired cartridge case.
    • Multi-barreled firearm – chambers (empty or loaded), hammer(s) position, breech (open or closed).
    • Package firearms to prevent altering the evidence in any way, to prevent cross contamination, and to preserve potential fingerprints or DNA evidence.
  • When removing a bullet from drywall, wood, or other material, cut around the bullet and submit – avoid using metal devices that may mark the bullet.
  • Bullets and cartridge cases should be dried prior to packaging as moisture will corrode the metal and may destroy markings of value.
  • Bullets (especially lead) should be packaged to protect them from being marked in transport.
  • Cartridge cases and bullets should be packaged in an envelope or box. Heat-sealed plastic bags and zip lock bags are acceptable for packaging as long as there is no moisture.
  • Evidence for distance determination examination should be packaged carefully with paper laid between layers to keep gun powder particles in place and to prevent transfer.
  • Items that have blood or other biological fluid must be air dried prior to packaging and labeled appropriately with a BIOHAZARD label.

Crime Scene Assistance:

Members of the Firearms/Toolmark Section may be requested to assist FIS (the Forensic Investigation Section) at crime scenes.  In this capacity, members of the Firearm/Toolmark Section may assist with examinations such as:

  • Trajectory measurement of the bullet's flight path prior to impact.
  • Assistance with firearms, including unloading and making them safe to package and submit to evidence.
  • Other general assistance at the direction of a Forensic Investigator.

 Toolmark Comparison:

Tool mark examination consists of comparing an object with a tool mark to a suspect tool or another tool mark. When two objects come into contact with one another, the possibility exists that the harder object will mark the softer object, leaving markings that can be microscopically compared. Examples of common tool marks/tools would include cut padlocks/bolt cutters, door lock striker plates/pry bar or screwdriver, knives/stab marks in tires, doorknobs/vise grips or pliers. It is important for investigators to keep an open mind when considering collecting tool mark evidence. Toolmark evidence can come in a variety of forms.


Submission of Toolmark Evidence:

  • Do not attempt to fit the tool and tool mark together at any time as it may compromise the integrity of the tool and/or tool mark; additionally, trace materials could be transferred in the process.
  • Do not change the position of a tool's working edges such as on a slip jawed pliers.
  • Do not package a suspect tool and an object possessing a tool mark together, they must be in individual containers.
  • If an object bearing a tool mark is too large to be easily collected it must be photographed first and then cast. A silicon rubber cast is taken and the cast is submitted for comparison instead of the object that contained the tool mark. Detailed photographs, parallel to the tool mark with an “L” scale, should be taken prior to casting. The cast should be photographed before and after removing it from the tool mark surface.
  • Items that have blood or other biological fluid must be air dried prior to packaging and labeled appropriately with a BIOHAZARD label.

Methods utilized:

Methods that may be utilized in Firearms and toolmark examinations include:

  • Visual examinations
  • Microscopic examinations
  • Microscopic comparisons
  • Chemical testing (for Distance Determination testing)
  • Stringing/lasers (for bullet trajectory)
  • Photography
  • Measurements
  • Database searches
  • Magnetic and/or Chemical etchant solutions (for Serial Number Restoration)
  • Grinding and polishing processes (for Serial Number Restoration)
  • Integrated Ballistic Identification System (IBIS)/National Integrated Ballistic Information System (NIBIN)
